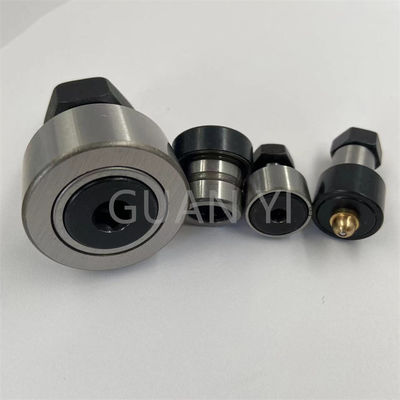

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal. The bearings can be relubricated via the stud.
| Specifications | ||
| Bearing Type | Cage guided rollers | |
| Dynamic Load Rating (Cr) | 4,450 | N |
| Static Load Rating (Cor) | 5,200 | N |
| Max Speed (Grease) | 16,000 | rpm |
| Tire Outer Dia. (Dt) | 22.00 | mm |
| Stud Dia. (ds) | 10.00 | mm |
| Tire Width (C) | 12.00 | mm |
| Tire Washer Width (C1) | 0.60 | mm |
| Total Length (B) | 36.00 | mm |
| Stud Length (B1) | 23.00 | mm |
| Threads (G) | M10 X 1 | |
| Thread Length (G1) | 12 | |
| Weight (g) | 45.00 | grams |
Material: Stud and Roller head: Hardened carbon steel alloy,
Needle rollers: Gcr15 or equivalent
Categories: Auto Bearing, Steering Column Bearings, Zero Clearance Steering Column Needle Bearing
Needle Bearing, Needle Bearings, Needle Roller Bearing, Needle Roller Bearings, Steering Column Bearing, Steering Column Bearings, Steering Column Needle Bearing, Steering Column Needle Bearings, Steering Column Needle Roller Bearing, Steering Column Needle Roller Bearings, Steering Column Roller Bearing, Steering Column Roller Bearings, Steering System Bearing, Steering System Bearings
Needle roller bearings, commonly known as needle bearings, are a specialized type of rolling bearing distinguished by their slender and elongated needle-shaped rollers. These bearings are highly regarded for their precision and compact design, making them ideal for applications with limited space, especially when facing radial space constraints.Compared to traditional ball bearings, needle roller bearings have a smaller cross-sectional area and volume, yet they boast a higher load-carrying capacity.This unique characteristic allows needle bearings to excel in various industries where space optimization and load-bearing capacity are paramount.
One of the key advantages of needle roller bearings is their ability to withstand high loads despite their smaller outer diameter and volume. This quality is particularly advantageous for applications that require miniaturization, light weighting, and precision engineering in machinery.Additionally, the reduced rotating radius of needle roller bearings results in lower rotational torque under the same friction force, enhancing mechanical efficiency significantly.
As a reputable China needle bearing supplier, we take pride in offering a divers erange of needle roller bearings to cater to a wide array of demands. Our product lineup includes stamped outer ring needle roller bearings, one-way needle roller bearings, solid ring needle roller bearings, thrust needle roller bearings, cage assembly bearings, bolt-type roller bearings, and linear bearings, among others. This extensive variety allows needle roller bearings to find extensive applications in industries such as automotive,motorcycles, printing machinery, industrial robots, and construction equipment.
At our company, we are committed to delivering high-quality needle bearings that meet our customers' specific requirements. Whether you need bearings for automotive applications, printing machinery, or industrial robots, our comprehensive range ensures that you find the perfect solution for your needs. Trust us as your reliable partner for top-notch needle roller bearings that guarantee superior performance and durability.
