Series : NK,NKS,RNA49,RNA69,RNAO,NAO,HK,HF,KF,CR,AXK,NTA,KT
Material : Chrome steel GCR15
Brand:OTOTRI
Application:
1. Wheel and pin bearing is widly applied in packaging machinery, food machinery,
2. Printing machinery, woodworking machinery, textile machinery, light machinery, mining
3. Machinery, engraving machines, automation equipment, CNC equipment, etc
|
Designations :
|

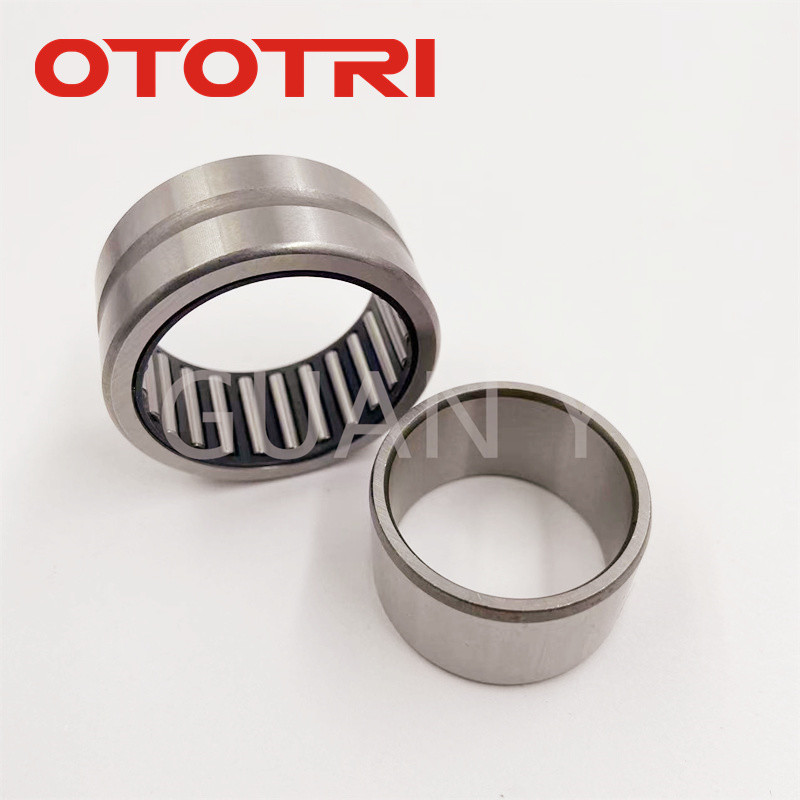

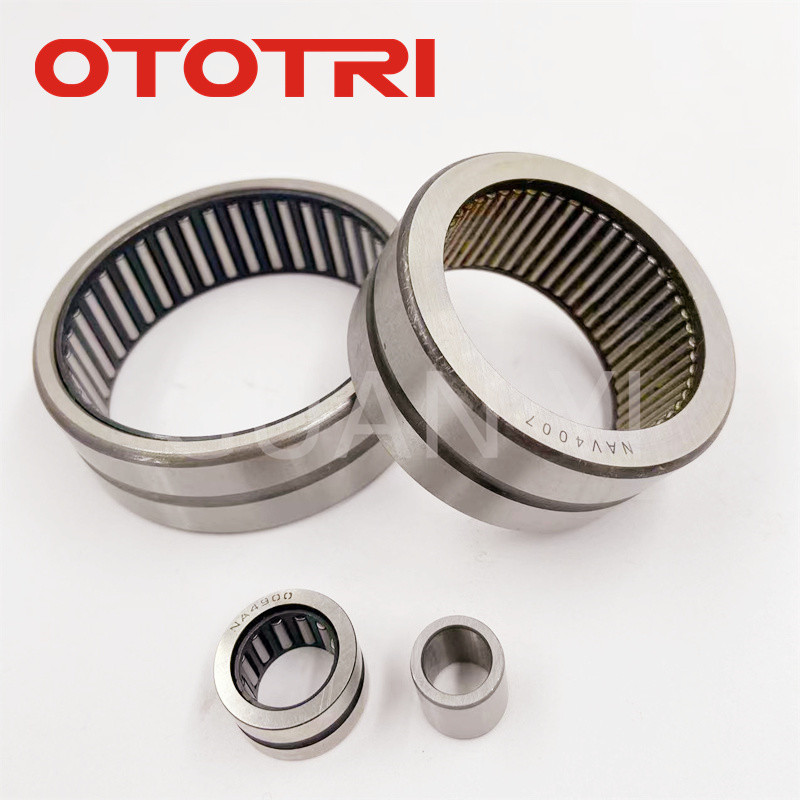

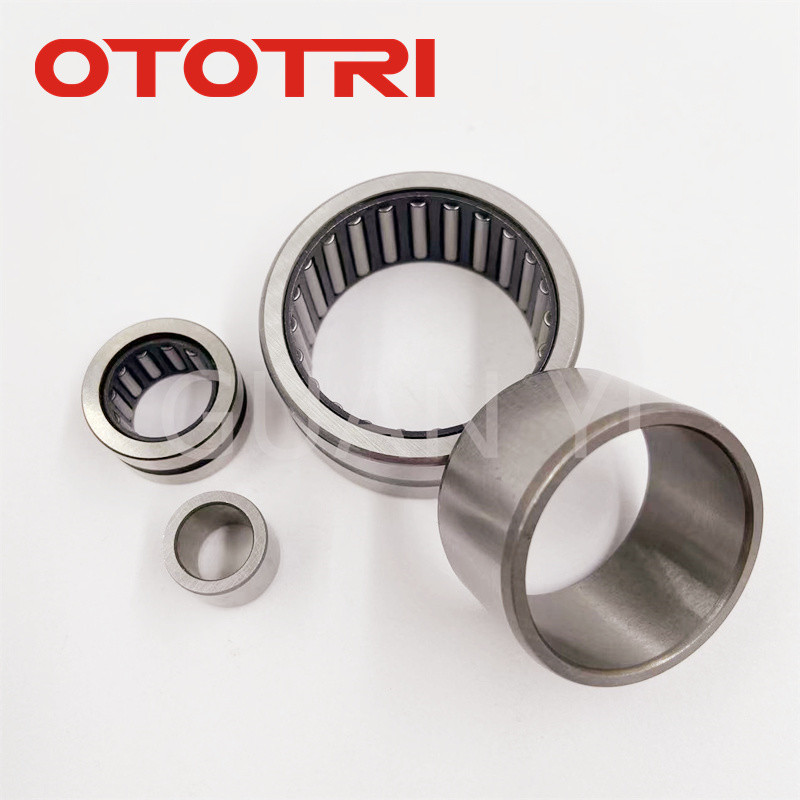

Good Price Needle Roller Bearings 28x42x20mm NKI Series Needle Roller Bearing NKI28/20
|
|
|
Needle Roller Bearing with Flanges without Inner Ring
|
|
Ring Material :
|
GCR15/ Machined Steel
|
|
Roller Material :
|
GCR15/ Chrome Steel
|
|
Cage Material :
|
Nylon
|
|
Number of Row :
|
Single Row
|
|
Precision Rating :
|
P0 P6 P5 P4
|
|
Application Industries :
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy
& Mining etc. |
|
Price List :
|
Negotiate
|
|
Service :
|
OEM or Customer Logo Acceptable and Sample Offer
|
|
Package :
|
Industrial Packing or As Customer Required
|
|
More Service :
|
plz Contact Us . The contact address is at the bottom.
|
|
Bearing Model
|
Dimensions(mm)
|
|
|
Basic Load Rating(KN)
|
|
Weight(Kg)
|
||
|
|
d
|
F
|
D
|
Dyn.C
|
Stat.Co
|
|
||
|
NA4900
|
10mm
|
22mm
|
13mm
|
8800N
|
10400N
|
0.02Kg
|
||
|
NA4900 2RS
|
10mm
|
22mm
|
13mm
|
7370N
|
8150N
|
0.03 Kg
|
||
|
NA4901
|
12mm
|
24mm
|
13mm
|
9900N
|
12200 N
|
0.03 Kg
|
||
|
NA4901 2RS
|
12mm
|
24mm
|
13mm
|
8090N
|
9650N
|
0.03 Kg
|
||
|
NA4902
|
15mm
|
28mm
|
13mm
|
11200N
|
15300 N
|
0.03 Kg
|
||
|
NA4902 2RS
|
15mm
|
28mm
|
13mm
|
9130N
|
12000N
|
0.04 Kg
|
||
|
NA4903
|
17mm
|
30mm
|
13mm
|
11400N
|
16300N
|
0.04 Kg
|
||
|
NA4903 2RS
|
17mm
|
30mm
|
13mm
|
9520N
|
12900 N
|
0.04Kg
|
||
|
NA4904
|
20mm
|
37mm
|
17mm
|
21600 N
|
28000 N
|
0.08Kg
|
||
|
NA4904 2RS
|
20mm
|
37mm
|
17mm
|
19400N
|
22400 N
|
0.08Kg
|
||
|
NA49/22
|
22.000mm
|
39mm
|
17mm
|
23300 N
|
32000 N
|
0.08 Kg
|
||
|
NA4905
|
25mm
|
42.000mm
|
17mm
|
24200 N
|
34500 N
|
0.09 Kg
|
||
|
NA4905 2RS
|
25mm
|
42.000mm
|
17mm
|
21600N
|
27500N
|
0.09 Kg
|
||
|
NA49/28
|
28.000mm
|
45mm
|
17mm
|
25100 N
|
36500 N
|
0.10 Kg
|
||
|
NA4906
|
30mm
|
47mm
|
17mm
|
25500 N
|
39000 N
|
0.10 Kg
|
||
|
NA4906 2RS
|
30mm
|
47mm
|
17mm
|
23300 N
|
32000 N
|
0.11 Kg
|
||
|
NA49/32
|
32.000mm
|
52.000mm
|
20mm
|
30800 N
|
51000N
|
0.16 Kg
|
||
|
NA4907
|
35mm
|
55.000 mm
|
20mm
|
31900 N
|
54000 N
|
0.17 Kg
|
||
|
NA4907 2RS
|
35mm
|
55.000mm
|
20mm
|
27000 N
|
43000 N
|
0.18 Kg
|
||
|
NA4908
|
40mm
|
62mm
|
22mm
|
42900 N
|
71000N
|
0.23 Kg
|
||
|
NA4908 2RS
|
40mm
|
62mm
|
22mm
|
36900 N
|
58500 N
|
0.25Kg
|
||
|
NA4909
|
45mm
|
68.000mm
|
22mm
|
45700 N
|
78000 N
|
0.27 Kg
|
||
|
NA4909 2RS
|
45mm
|
68.000mm
|
22mm
|
39100 N
|
64000 N
|
0.29 Kg
|
||
|
NA4910
|
50mm
|
72mm
|
22mm
|
47300 N
|
85000 N
|
0.27 Kg
|
||
|
NA4910 2RS
|
50mm
|
72mm
|
22mm
|
40200N
|
69500 N
|
0.30 Kg
|
||
|
NA4911
|
55mm
|
80.000mm
|
25mm
|
57200 N
|
106000 N
|
0.40 Kg
|
||
|
NA4912
|
60mm
|
85.000mm
|
25mm
|
60500 N
|
114000 N
|
0.43 Kg
|
||
|
NA4913
|
65.000mm
|
90mm
|
25mm
|
61600N
|
120000 N
|
0.46 Kg
|
||
|
NA4914
|
70.000mm
|
100mm
|
30mm
|
84200 N
|
163000 N
|
0.73 Kg
|
||
|
NA4915
|
75.000mm
|
105mm
|
30mm
|
84200 N
|
170000 N
|
0.78 Kg
|
||
|
NA4916
|
80.000mm
|
110.000mm
|
30mm
|
88000 N
|
183000 N
|
0.88 Kg
|
||
|
NA4917
|
85.000mm
|
120mm
|
35mm
|
108000 N
|
250000 N
|
1.25 Kg
|
||
|
NA4918
|
90.000mm
|
125.000mm
|
35mm
|
112000 N
|
265000 N
|
1.30 Kg
|
||
|
NA4920
|
100.000mm
|
140.000mm
|
40mm
|
125000N
|
280000 N
|
1.90 Kg
|
||
|
NA4922
|
110.000mm
|
150.000mm
|
40mm
|
130000 N
|
300000 N
|
2.10Kg
|
||
|
NA4924
|
120.000mm
|
165.000mm
|
45mm
|
176000 N
|
405000 N
|
2.85 Kg
|
||
|
NA4926
|
130mm
|
180.000mm
|
50mm
|
198000N
|
480000 N
|
3.90Kg
|
||
