Name: OTOTRI Single And Double Row HF-1416 One Way Needle Roller Bearing
Brand: OTOTRI
SKU: HF1416
Price: 0.1 USD
Availability: InStock
Rating: 4.8 (192 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Bore Size: 6 - 60 Mm

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company

Type: Needle, Machined Ring

Precision Rating: P5

Seals Type: OPEN / RS /ZZ

Number Of Row: Single Row / Double

Product Name: HF Series Needle Bearing

Material: GCR15

Application: Auto Parts

Structure: Needle Bearing With Machined Rings

Stocks: Large

Service: OEM Customized Services

Lubrication: Oil Grease

Feature: Long Life

Cage: Without Cage Full Needle

Product Name: Needle Roller Bearing

Precision Grade: P5 P6

Brand: OTOTRI

OEM/ODM: Available

Cage Material: Steel , Nylon

Clearance: C0,C2,C3,C4,C5 Is Available

Highlight:

One Way Needle Roller Bearing

hf 1416 bearing

HF-1416

Basic Infomation

Place of Origin: Changzhou Jiangsu China

Brand Name: OTOTRI

Certification: ISO

Model Number: HF1416

Payment & Shipping Terms

Packaging Details: Plastic packaging + brand box + carton

Delivery Time: 5-7 days after receiving your payment

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 10000pcs/week

Gallery

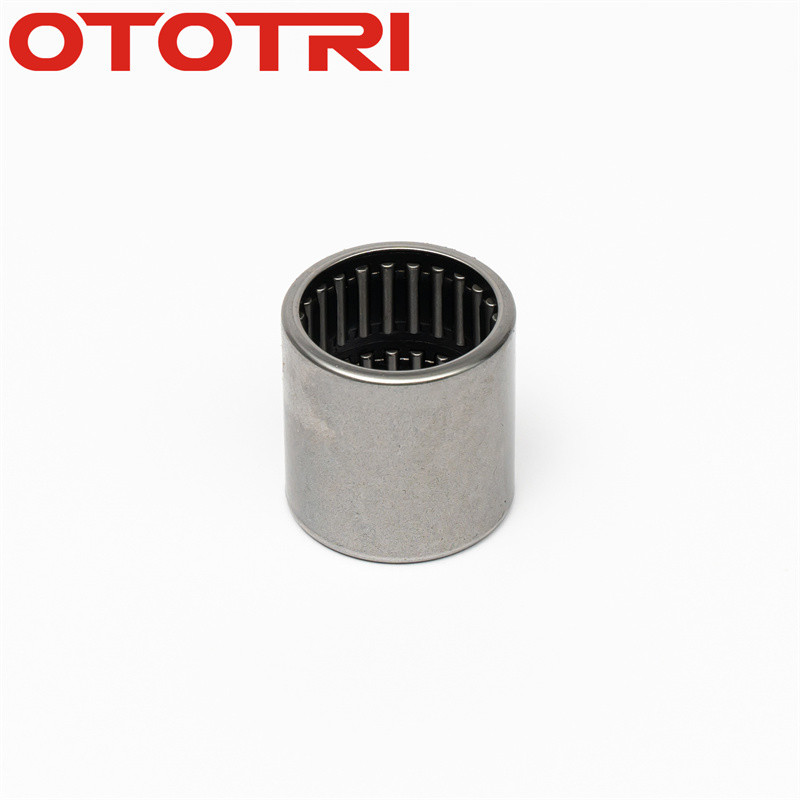

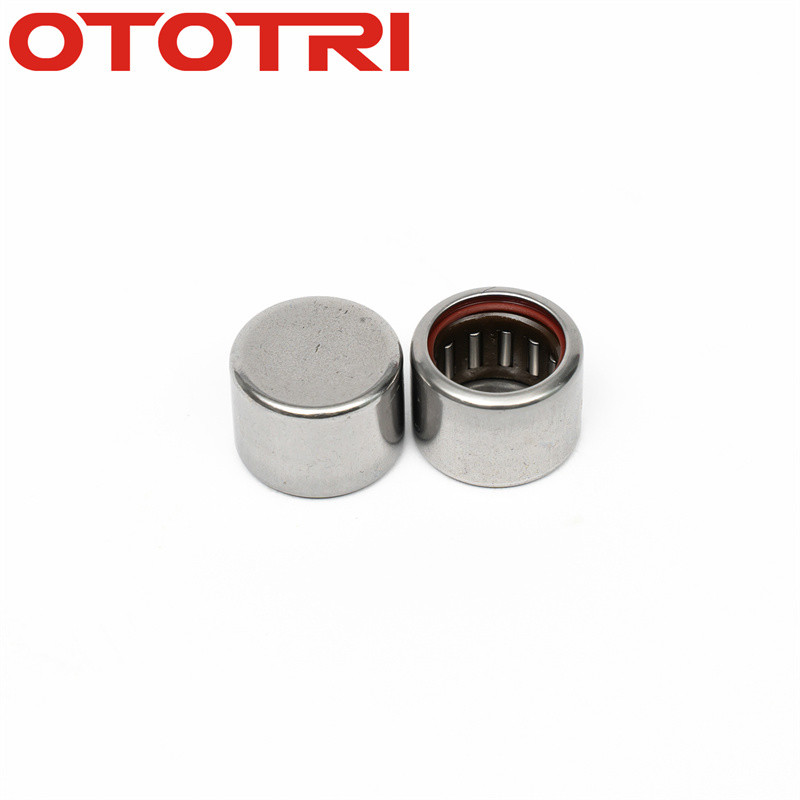

OTOTRI Single And Double Row HF-1416 One Way Needle Roller Bearing

Product Description

OTOTRI Single and Double Row HF-1416 One Way Needle Roller Bearing with Long Service Life

Product Description

Drawn cup needle roller bearings

Drawn cup needle roller bearings,as then ame suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with either open ends or a closed end.They are characterized by a very low sectional height and high load carry- ing capacity. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a race way for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Generally,drawn cup needle roller bearings have a recommended maximum operating tem- perature of 140°C,unless otherwise stated in there levant sections in this chapter.The maxi- mum operating temperature is limited by the seal and cage materials and the applied grease. supplies a wide assortment of drawn cup needle roller bearings.

drawn cup needle roller bearings with open ends :HK series

drawn cup needle roller bearings with a closed end: BK series

drawing cup needle roller bearing with full complement needles

shaft diameter	Model number	Dimensions(mm)					Basic load(N)
(mm)	Old	ID	OD	W	Dynamic	Static
(mm)	Old			Fw	Dynamic	Static	D	B
8	F-08410	8	14	10	5200	7150
8		F-08412	8	14	12	4550	7150
9	F-091510	9	15	10	8000	11500
9		F-091513	9	15	13	8560	12800
10	F-101615	10	16	15	6890	11500
12	F-121712	12	17	12	8400	11900
		F-121715	12	17	15	9000	12500
		F-121718	12	17	18	9800	13500
		F-1212	12	18	12	6380	10900
13	F-1312	13	19	12	8500	14200
14	F-1412	14	20	12	7900	13500
14		F-1416	14	20	16	12700	22400
15	F-152012	15	20	12	8400	11900
		F-152016	15	20	16	9500	12800
		F-152020	15	20	20	10500	16000
		F-1512	15	21	12	9700	15900
		F-1516	15	21	16	9700	15500
16	F-1616	16	22	16	14100	25900
16		F-1612	16	22	12	8700	15500
17	F-1712	17	23	12	10600	21600
		F-1714	17	23	14	12500	22500
		F-1716	17	23	16	13200	23700
		F-1718	17	23	18	13800	24800
		F-1720	17	23	20	18000	36700
		F-1722	17	23	22	19300	38200
18	F-1812	18	24	12	10800	19200
18		F-18916	18	24	16	15000	29100
20	F-2010	20	26	10	8000	15600
		F-2012	20	26	12	10200	19500
		F-2014	20	26	14	15800	40500
		F-2016	20	26	16	16000	30500
		F-2020	20	26	20	18800	42500
		F-2025	20	26	25	20500	35500
22	F-2210	22	28	10	7900	13000
		F-2212	22	28	12	9000	13300
		F-2216	22	28	16	17000	33000
		F-2220	22	258	20	20300	47200
25	F-2512	25	32	12	5250	6000
		F-2516	25	32	16	18700	37900
		F-2520	25	32	20	22800	46000
		F-2522	25	32	22	11000	16500
		F-2525	25	32	25	11500	18500

1	Needle Roller and Cage Assemblies	K, K‥T2, K‥S, K‥ZW, KMJ, KMJ‥S, KJ‥S, KV‥S
1	Needle Roller and Cage Assemblies		PCJ
2	Needle Roller and Cage Assemblies for Connecting Rod	PK
2	Needle Roller and Cage Assemblies for Connecting Rod		KBK
3	Drawn Cup Needle Roller Bearings	HK, HK‥ZWD, HMK, HMK‥ZWD, BK, BK‥ZWD
			HK‥L, HMK‥L, HK‥LL, HMK‥LL, BK‥L
			DCL
			HCK
4	Machined-Ring Needle Roller Bearings	RNA48, RNA49, RNA59, RNA69, NK, NKS
			NA48, NA49, NA59, NA69, NK+IR, NKS+IR
			MR
			MR+MI
			RNA49‥L, RNA49‥LL
			NA49‥L, NA49‥LL
5	Machine-ring Needle Roller Bearings Separable Type	RNAO, RNAO‥ZW
5	Machine-ring Needle Roller Bearings Separable Type		NAO, NAO‥ZW
6	Self Aligning Needle Roller Bearings	RPNA‥R
6	Self Aligning Needle Roller Bearings		PNA‥R
7	Inner ring	IR
7	Inner ring		MI
8	Clearance-Adjustable Needle Roller Bearings	RNA49‥S
8	Clearance-Adjustable Needle Roller Bearings		NA49‥S
9	Complex Bearings	NKX, NKX‥Z
			NKX+IR, NKX‥Z+IR
			NKXR, NKXR‥Z
			NKXR+IR, NKXR‥Z+IR
			NKIA
			NKIB
			AXN
			ARN
10	Cam Followers	KRM‥XH, KRMV‥XH
			KR‥H, KR‥XH, KR‥LLH, KR‥XLLH
			KR, KR‥X, KR‥LL, KR‥XLL
			KRV‥H, KRV‥XH, KRV‥LLH, KRV‥XLLH
			KRV, KRV‥X, KRV‥LL, KRV‥XLL
			KRT, KRT‥X, KRT‥LL, KRT‥XLL
			KRVT, KRVT‥X, KRVT‥LL, KRVT‥XLL
			KRU, KRU‥X, KRU‥LL, KRU‥XLL
			KRVU, KRVU‥X, KRVU‥LL, KRVU‥XLL
			NUKR‥H, NUKR‥XH
			NUKR, NUKR‥X
			NUKRT, NUKRT‥X
			NUKRU, NUKRU‥X
			CR‥H, CR‥XH, CR‥LLH, CR‥XLLH
			CR, CR‥X, CR‥LL, CR‥XLL
			CRV‥H, CRV‥XH, CRV‥LLH, CRV‥XLLH
			CRV, CRV‥X, CRV‥LL, CRV‥XLL
11	Roller Followers	RNAB2, RNAB2‥X
			NAB2, NAB2‥X
			RNA22‥LL, RNA22‥XLL
			NA22‥LL, NA22‥XLL
			NATR, NATR‥X, NATR‥LL, NATR‥XLL
			NATV, NATV‥X, NATV‥LL, NATV‥XLL
			NACV, NACV‥X, NACV‥LL, NACV‥XLL
			NUTR2, NUTR2‥X, NUTR3, NUTR3‥X
			NUTW, NUTW‥X
12	Thrust Roller Bearings	AXK11, AS11, WS811, GS811
			811, 812, 893, 874, K811, K812, K893, K874, WS811
			WS812, WS893, WS874, GS811, GS812, GS893, GS874
			AXA21, ARA821, ZS
			AXB21, ARB821, ZS
13	One-way Clutches	HF
13	One-way Clutches		HFL
