Home /Products/Drawn Cup Needle Roller Bearing/BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly

100pcs
MOQ
0.1~100$/pcs
Price
BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly
Features Gallery Product Description Request A Quote
Features
Specifications
Bore Size: 1 - 16 Mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Type: Needle
Precision Rating: P5
Seals Type: OPEN / RS /ZZ
Number Of Row: Single Row / Double
Product Name: Drawn Cup Needle Roller Bearing BK1614s
Bore Size:: 1 - 5 Mm
Type:: Needle
Brand Name:: ZYSL
Model Number:: BK050905
Precision Rating:: P0 P6 P5 P4 P2
Thickness:: 5mm
Application:: Application:
Port: Shanghai,Qingdao,Guangzhou
Product Name: Needle Roller Bearing
Material: GCR15
Precision Grade: P5 P6
Brand: OTOTRI
OEM/ODM: Available
Cage Material: Steel , Nylon
Application: Auto Parts
Clearance: C0,C2,C3,C4,C5 Is Available
Highlight:

BK1614RS Bearing

,

BK1614 Bearing

,

needle roller cage assembly
Basic Infomation
Place of Origin: Changzhou Jiangsu China
Brand Name: OTOTRI
Certification: ISO
Model Number: BK1614
Payment & Shipping Terms
Packaging Details: Plastic packaging + brand box + carton
Delivery Time: 5-7 days after receiving your payment
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 10000pcs/week
Product Description
OTOTRI BK1614 BK1614RS Drawn Cup Needle Roller Bearings for Advanced Metallurgical Equipment
Best Price BK1614 BK1614RS Drawn Cup Needle Roller Bearings BK Series 16x22x14mm Without Inner Ring For Metallurgical Equipment
BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 0
Product Description
Descriptions
Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and needle roller assembly featuring small section height,big load capacity & rigidity,compact structure and small size,high rotating accuracy with the structure of disposed inner ring.

Needle roller bearing is characterized by multiple structures,broad adaptability and easy installation.

It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and etc. Various machinery equipment.
With this kind of bearing,machine design can realize the goal of small-scale & light weight.

Types of Designs:

This kind of bearing has multiple structural styles for the choice of customers,such as narrow & broad series,with or without
inner rings,cages,rib or sealings. It can be designed according to the special structural requirements of customers as well.

Product Precision Accuracy:

Dimensional tolerance and geometrical accuracy is based on GB/T5801.Mutual difference of needle roller diameter is 2 um,and the
precision grade is class G2(ISO GB/T309)

The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer ring with cage and roller assembly.

Bearing radial running clearance conforms to the value defined by class 0 group of GB/T4604 Special precision grade in based on
GB/T307.1

For fuller information on the special requirement of bearing running clearance, inscribed circle and precision grade,please
contact our company.

Material:

Material for needle roller is GCr15 bearing steel,quench-hardening HRC60-65
Material for inner and outer rings is GCr15 bearing steel,quench-hardening HRC60-65
Material for cages is quality low-carbon steel or reinforced nylon.

Special Directions:

Bearing running clearance and inner-cutting roundness should be regulated according to different conditions.

Machine tolls should be used for press-in fitting or thermal fitting when install the bearing.Limited by plastic cages(suffixed
with TN) and sealing-element material ,operating temperature is -30℃--+100℃

For general-disposition design of bearings,refer to the relevant recommendation in the applied technology of roller bearings.
Bearing Model
Inside Dia.(mm)
Outside Dia.(mm)
Thickness(mm)
Weight(KG)
BK0306-TV
3
6.5
6
0.001
BK0408
4
8
8
0.002
BK0509
5
9
9
0.002
BK0609
6
10
9
0.003
BK0709
7
11
9
0.003
BK0808
8
12
8
0.003
BK0810
8
12
10
0.003
BK0910
9
13
10
0.004
BK0912
9
13
12
0.005
BK1010
10
14
10
0.004
BK1012
10
14
12
0.005
BK1015
10
14
15
0.006

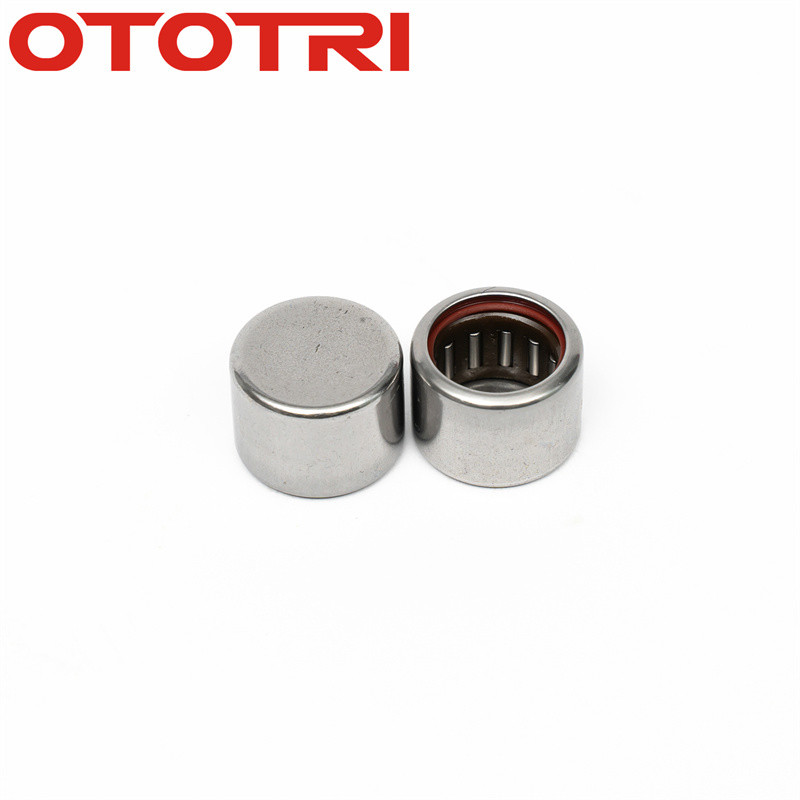

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 1

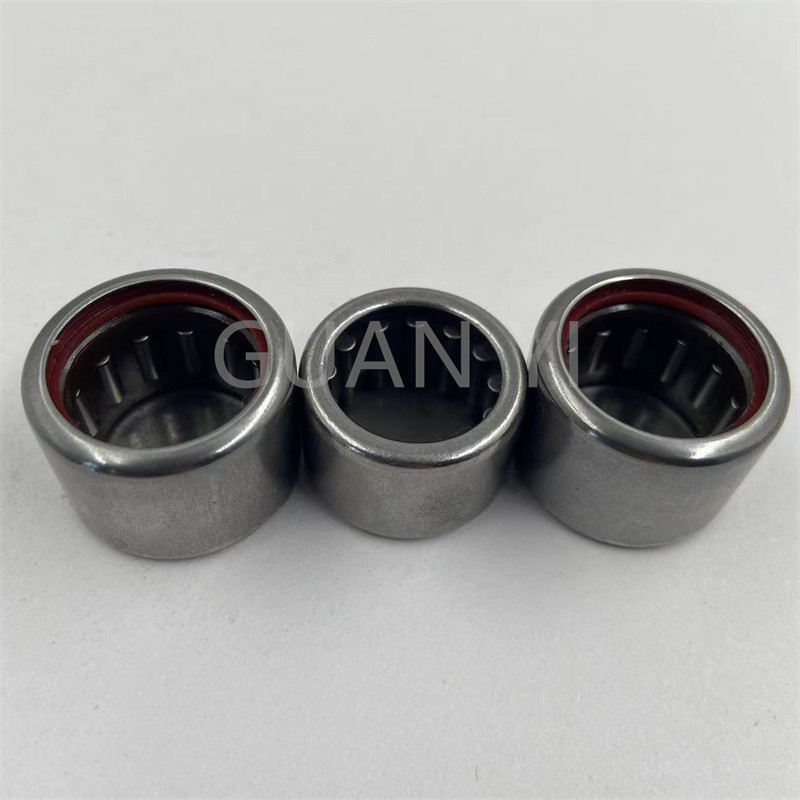

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 2
Recommend Products

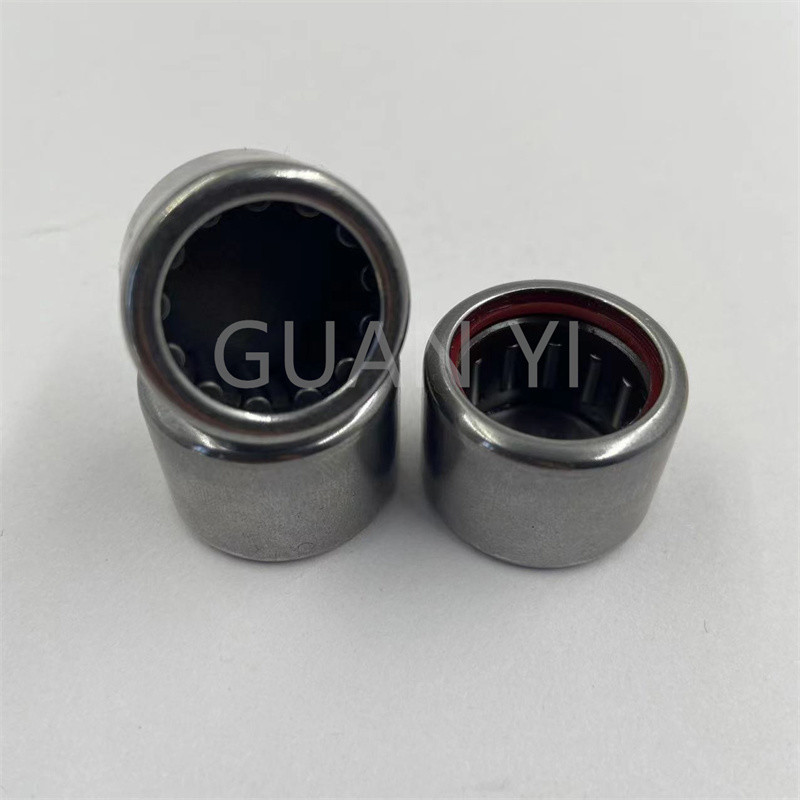

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 3
Customer Feedback

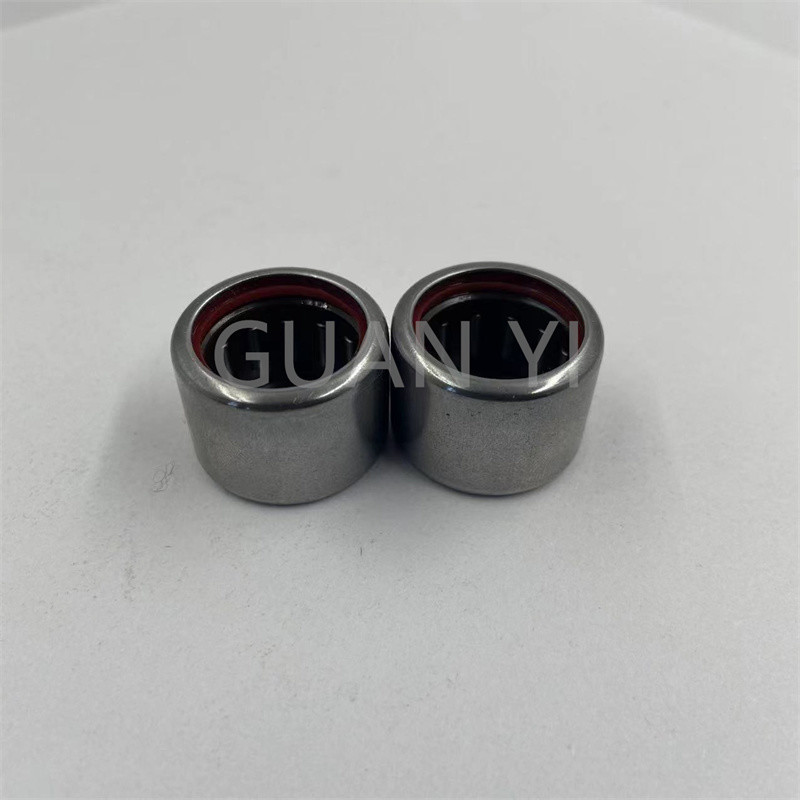

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 4
Company Profile

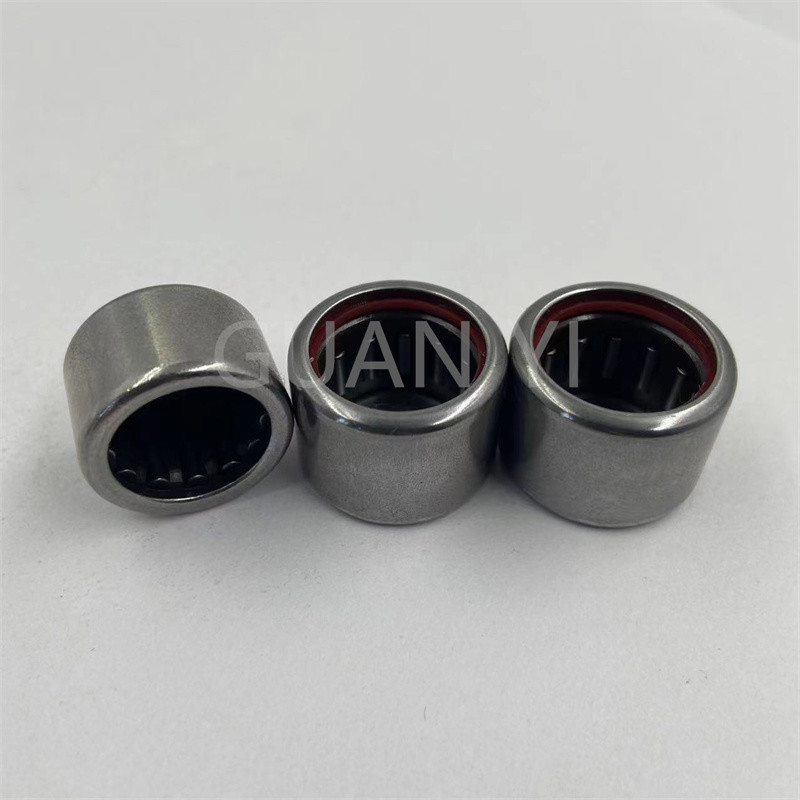

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 5
Certifications

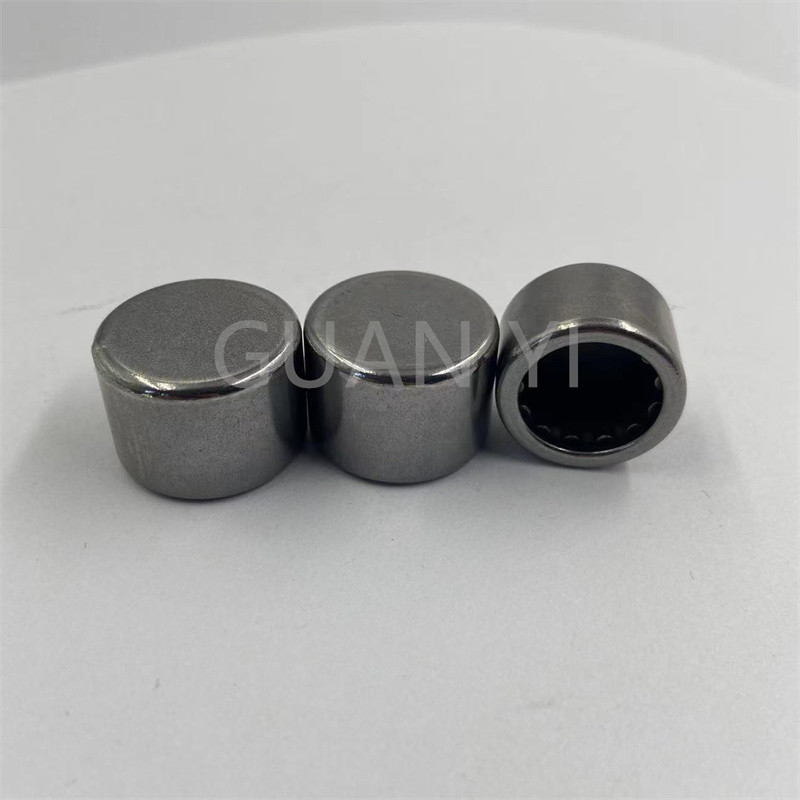

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 6
Packing & Shipping

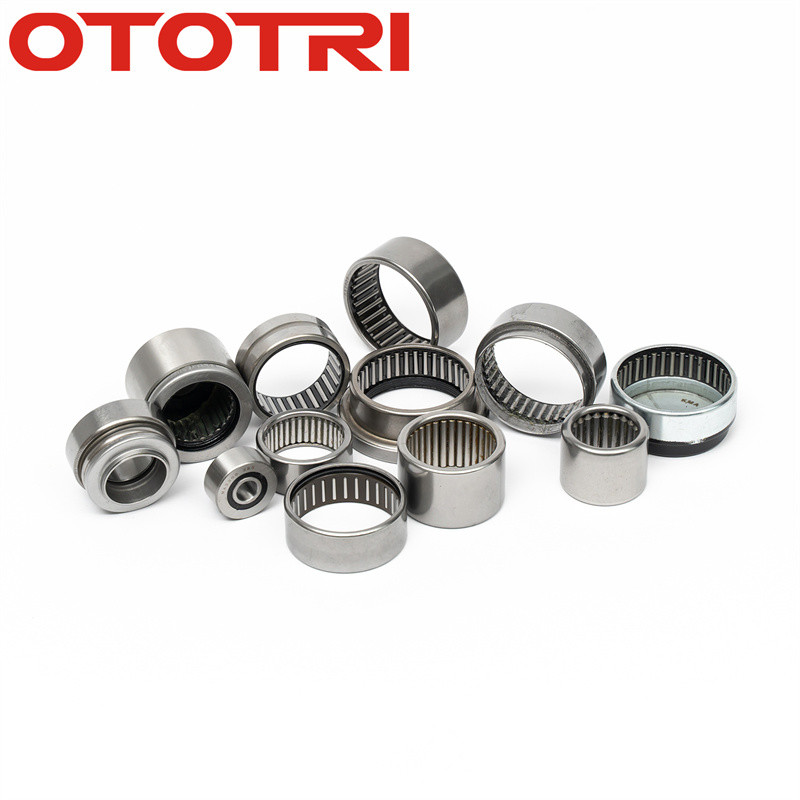

BK1614 BK1614RS Drawn Cup Needle Roller Bearings Needle Roller Cage Assembly 7
FAQ
Q:What the MOQ of your company?
A:Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter higher cost, sure the more you purchase the cheaper
cost you could get.

Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.

Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?

Q:Dose your factory have any certificate?
A:yes.we have ISO 9001:2008,IQNET and SGS. If you want other like CE,we can do for you.

Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.

Q:Could you tell me the material of your bearing?
A:We have chrome steel,and stainless steel,ceramic and plastic material.

Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,7-12 days to your city.)

Q:Could you tell me the payment term of your company can accept? A:T/T.Western Union,PayPal

Q:Could you tell me the delivery time of your doors?
A:If stock,in 7 days or base on your order quantity

Q:Can you give me some discount?
A:Yes, you can, contact me immediately to get more discounts.
