Designations :
|

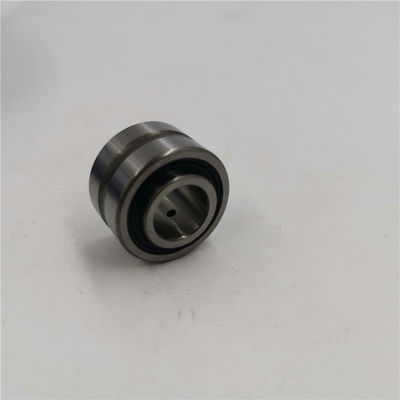

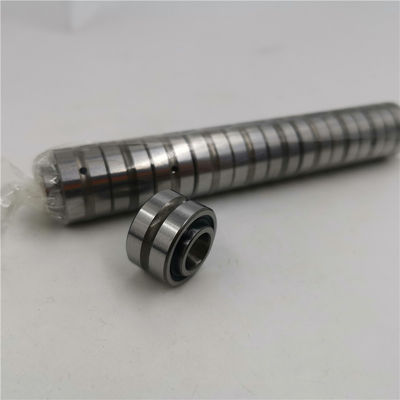

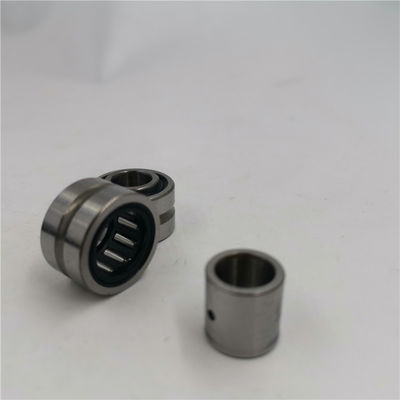

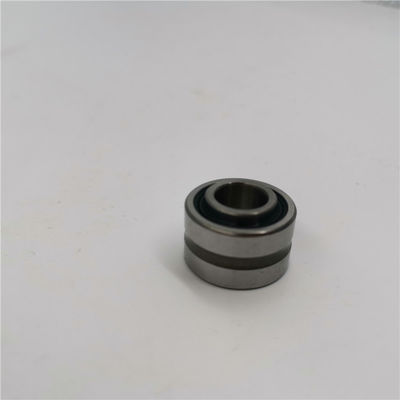

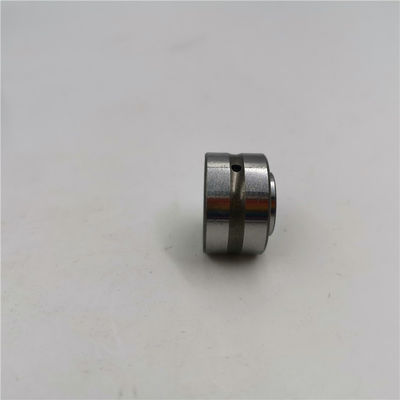

Needle Roller Bearing NA4904 NA4900 NA4901 For Motorcycle Engine Connecting Rod
|
|
Needle Roller Bearing with Flanges without Inner Ring
|
Ring Material :
|
GCR15/ Machined Steel
|
Roller Material :
|
GCR15/ Chrome Steel
|
Cage Material :
|
Nylon
|
Number of Row :
|
Single Row
|
Precision Rating :
|
P0 P6 P5 P4
|
Application Industries :
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy
& Mining etc. |
Price List :
|
Negotiate
|
Service :
|
OEM or Customer Logo Acceptable and Sample Offer
|
Package :
|
Industrial Packing or As Customer Required
|
More Service :
|
plz Contact Us . The contact address is at the bottom.
|
Bearing Model
|
Dimensions(mm)
|
|
|
Basic Load Rating(KN)
|
|
Weight(Kg)
|
||
|
d
|
F
|
D
|
Dyn.C
|
Stat.Co
|
|
||
NA4900
|
10mm
|
22mm
|
13mm
|
8800N
|
10400N
|
0.02Kg
|
||
NA4900 2RS
|
10mm
|
22mm
|
13mm
|
7370N
|
8150N
|
0.03 Kg
|
||
NA4901
|
12mm
|
24mm
|
13mm
|
9900N
|
12200 N
|
0.03 Kg
|
||
NA4901 2RS
|
12mm
|
24mm
|
13mm
|
8090N
|
9650N
|
0.03 Kg
|
||
NA4902
|
15mm
|
28mm
|
13mm
|
11200N
|
15300 N
|
0.03 Kg
|
||
NA4902 2RS
|
15mm
|
28mm
|
13mm
|
9130N
|
12000N
|
0.04 Kg
|
||
NA4903
|
17mm
|
30mm
|
13mm
|
11400N
|
16300N
|
0.04 Kg
|
||
NA4903 2RS
|
17mm
|
30mm
|
13mm
|
9520N
|
12900 N
|
0.04Kg
|
||
NA4904
|
20mm
|
37mm
|
17mm
|
21600 N
|
28000 N
|
0.08Kg
|
||
NA4904 2RS
|
20mm
|
37mm
|
17mm
|
19400N
|
22400 N
|
0.08Kg
|
||
NA49/22
|
22.000mm
|
39mm
|
17mm
|
23300 N
|
32000 N
|
0.08 Kg
|
||
NA4905
|
25mm
|
42.000mm
|
17mm
|
24200 N
|
34500 N
|
0.09 Kg
|
||
NA4905 2RS
|
25mm
|
42.000mm
|
17mm
|
21600N
|
27500N
|
0.09 Kg
|
||
NA49/28
|
28.000mm
|
45mm
|
17mm
|
25100 N
|
36500 N
|
0.10 Kg
|
||
NA4906
|
30mm
|
47mm
|
17mm
|
25500 N
|
39000 N
|
0.10 Kg
|
||
NA4906 2RS
|
30mm
|
47mm
|
17mm
|
23300 N
|
32000 N
|
0.11 Kg
|
||
NA49/32
|
32.000mm
|
52.000mm
|
20mm
|
30800 N
|
51000N
|
0.16 Kg
|
||
NA4907
|
35mm
|
55.000 mm
|
20mm
|
31900 N
|
54000 N
|
0.17 Kg
|
||
NA4907 2RS
|
35mm
|
55.000mm
|
20mm
|
27000 N
|
43000 N
|
0.18 Kg
|
||
NA4908
|
40mm
|
62mm
|
22mm
|
42900 N
|
71000N
|
0.23 Kg
|
||
NA4908 2RS
|
40mm
|
62mm
|
22mm
|
36900 N
|
58500 N
|
0.25Kg
|
||
NA4909
|
45mm
|
68.000mm
|
22mm
|
45700 N
|
78000 N
|
0.27 Kg
|
||
NA4909 2RS
|
45mm
|
68.000mm
|
22mm
|
39100 N
|
64000 N
|
0.29 Kg
|
||
NA4910
|
50mm
|
72mm
|
22mm
|
47300 N
|
85000 N
|
0.27 Kg
|
||
NA4910 2RS
|
50mm
|
72mm
|
22mm
|
40200N
|
69500 N
|
0.30 Kg
|
||
NA4911
|
55mm
|
80.000mm
|
25mm
|
57200 N
|
106000 N
|
0.40 Kg
|
||
NA4912
|
60mm
|
85.000mm
|
25mm
|
60500 N
|
114000 N
|
0.43 Kg
|
||
NA4913
|
65.000mm
|
90mm
|
25mm
|
61600N
|
120000 N
|
0.46 Kg
|
||
NA4914
|
70.000mm
|
100mm
|
30mm
|
84200 N
|
163000 N
|
0.73 Kg
|
||
NA4915
|
75.000mm
|
105mm
|
30mm
|
84200 N
|
170000 N
|
0.78 Kg
|
||
NA4916
|
80.000mm
|
110.000mm
|
30mm
|
88000 N
|
183000 N
|
0.88 Kg
|
||
NA4917
|
85.000mm
|
120mm
|
35mm
|
108000 N
|
250000 N
|
1.25 Kg
|
||
NA4918
|
90.000mm
|
125.000mm
|
35mm
|
112000 N
|
265000 N
|
1.30 Kg
|
||
NA4920
|
100.000mm
|
140.000mm
|
40mm
|
125000N
|
280000 N
|
1.90 Kg
|
||
NA4922
|
110.000mm
|
150.000mm
|
40mm
|
130000 N
|
300000 N
|
2.10Kg
|
||
NA4924
|
120.000mm
|
165.000mm
|
45mm
|
176000 N
|
405000 N
|
2.85 Kg
|
||
NA4926
|
130mm
|
180.000mm
|
50mm
|
198000N
|
480000 N
|
3.90Kg
|
