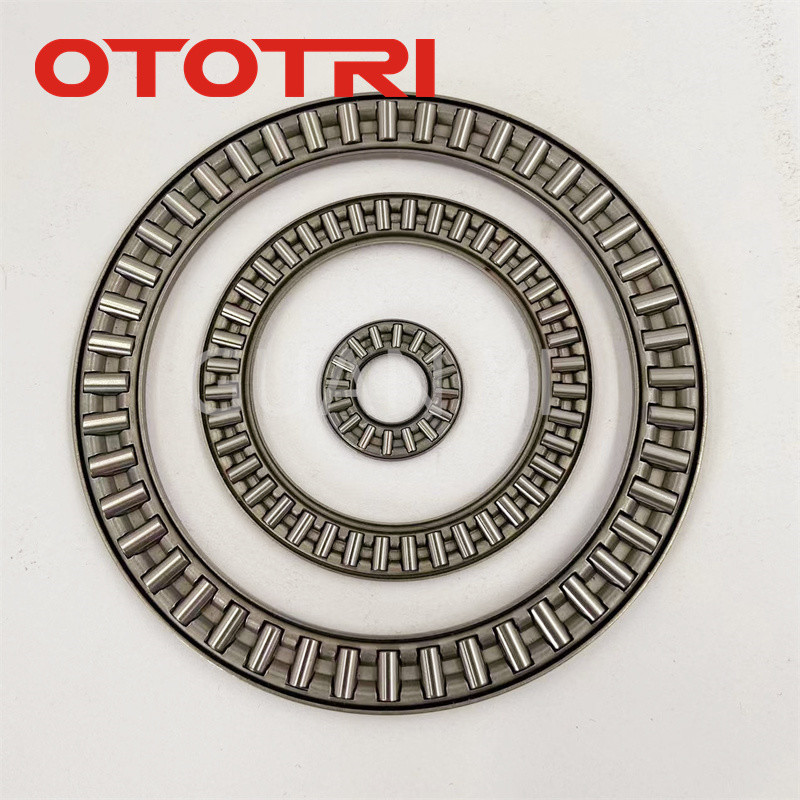

needle roller thrust bearings are fitted with a form-stable cage to reliably guide and retaina large number of needle rollers. The diameter deviations of the rollers within one assembly are within 2µm,enabling these bearings to accom- modate heavy axial loads and shock loads. These bearings provide a high degree of stiff- ness within a minimum axial space. Inapplica- tions where the faces of adjacent machine com- ponents can serve as race ways,needle roller thrust bearings will take up no more space than a conventional thrust washer.They can accom- modate axial loads acting in one direction only. supplies needle roller thrust bearings in two designs:

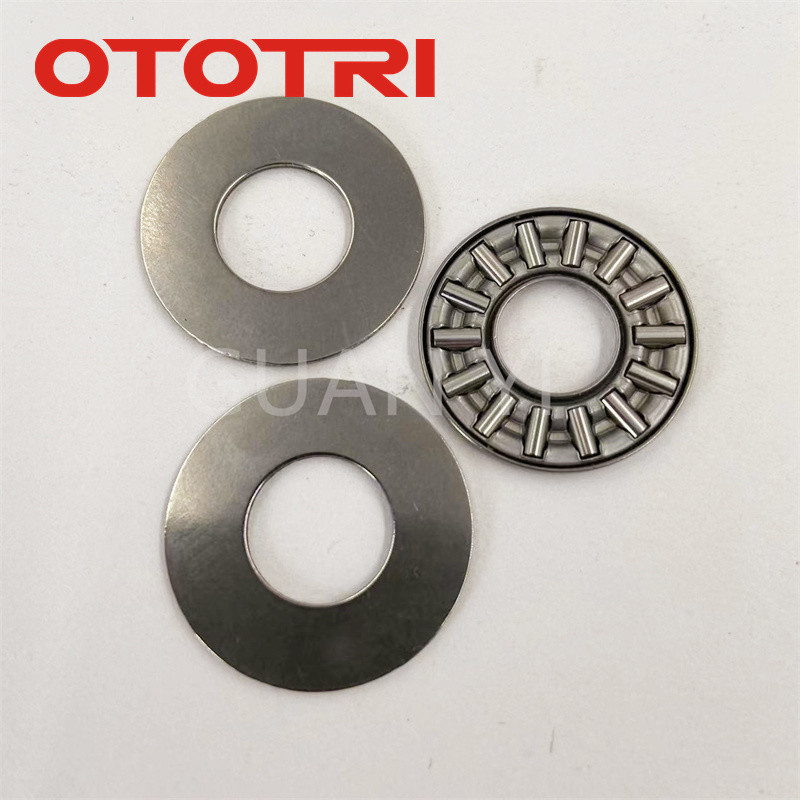

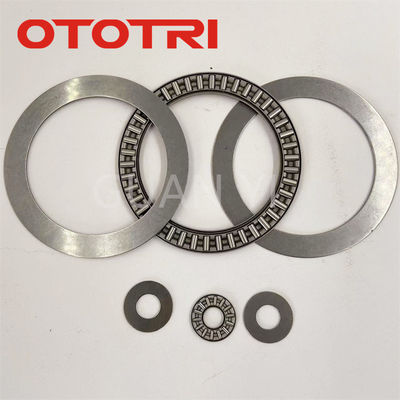

needle roller and cage thrust assembly
Size Information
Bearing Part No.
Dc1
Dc
Dw
AXK0414-TV
4
14
2
AXK0515-TV
5
15
2
AXK0619-TV
6
19
2
AXK0821-TV
8
21
2
AXK1024
10
24
2
AXK1226
12
26
2
AXK1528
15
28
2
AXK1730
17
30
2
AXK2035
20
35
2
AXK2542
25
42
2
AXK3047
30
47
2
AXK3552
35
52
2
AXK4060
40
60
3
AXK4565
45
65
3
AXK5070
50
70
3
AXK5578
55
78
3
AXK6085
60
85
3
AXK6590
65
90
3
AXK7095
70
95
4
AXK75100
75
100
4
AXK80105
80
105
4
AXK85110
85
110
4
AXK90120
90
120
4
AXK100135
100
135
4
AXK110145
110
145
4
AXK120155
120
155
4
AXK130170
130
170
5
AXK140180
140
180
5
AXK150190
150
190
5
AXK160200
160
200
5
Application
Heavy industry machine tool parts matching
gearbox
transfer case
engine
Steering and Braking System
Axle support end
outboard engine
electrical tools
copier
printing press
fax machine
All kinds of machiner
